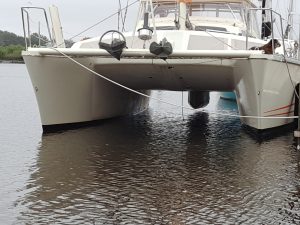

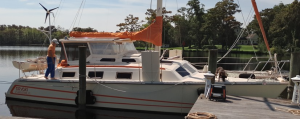

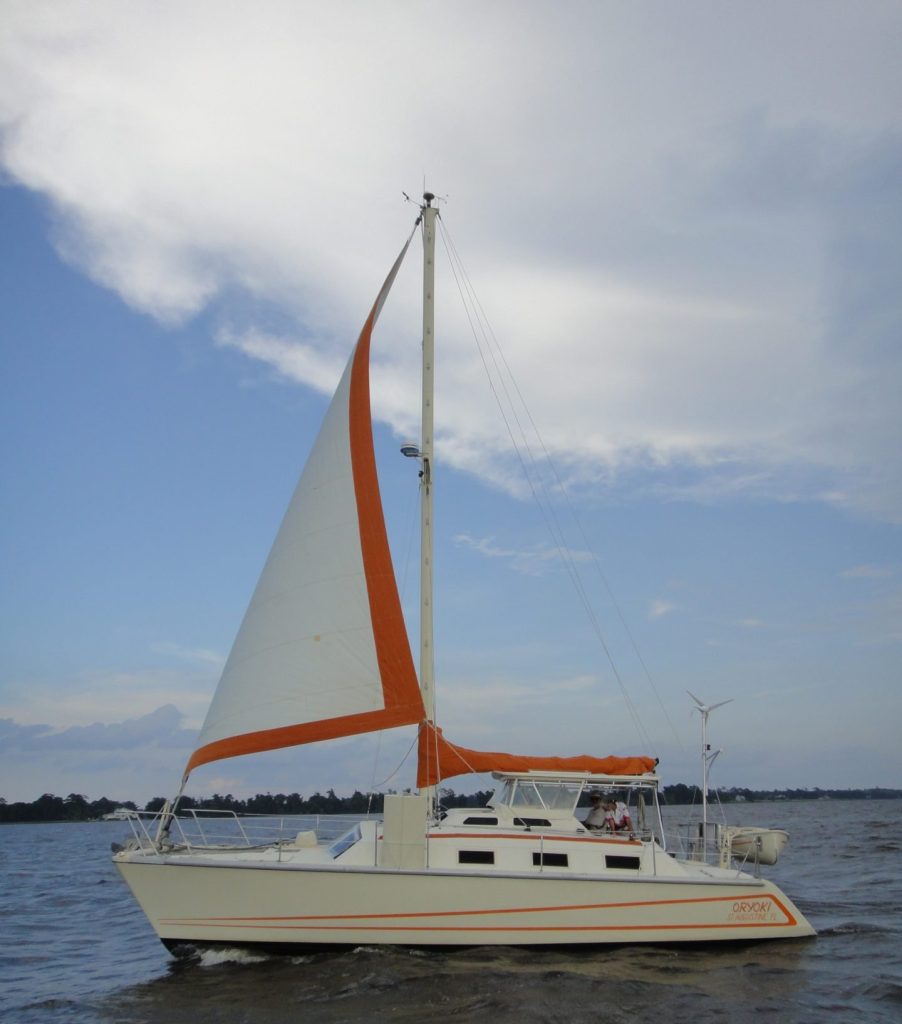

S/V ORYOKI is an Edenton, NC based 1984 Witness 35 For Sale By Owner. This owner requires financial settlement only. No trades.
Catamarans, we all know, have two hulls. The Witness 35 is no exception, but she is exceptional in that she is really two boats in one. With her 2′-2″-inch draft, the Witness 35 is the perfect gunkholer, letting you poke about in the bays, backwaters, and byways of the world where even centerboard-equipped monohulls can’t go. A new world of cruising grounds and isolated anchorages will open up for you. Not many of your monohull friends will be able to follow you into three or four foot depths.
Because of the tremendous forces the wind and sea apply to catamarans, we who build the Witness 35 feel that construction techniques and practices must be of the highest standards. This will not only guarantee that your yacht will protect you when the wind pipes up, but will protect the value of your investment over the years.
The hand-laid, one-piece hulls have substantial thickness at the shoes, tapering to thinner sections at the sheer. PVC structural foam sandwich construction stiffens and insulates the hulls throughout the accommodations area.
The deck and bridge deck are also cored with structural foam to provide additional stiffness, insulation, and positive flotation. Naturally, all bulkheads and floorboards are bonded to the hulls for added strength and rigidity.
Under both power and sail the Witness 35 will please the most demanding yachtsmen. Her 625 square feet of working sail area will keep her footing in light breezes, and, as the breeze freshens, you will experience acceleration and speed that monohull sailors will never know. Tacking, even in a zephyr, is straightforward—no need to back the jib as in lesser performing designs.
Running rigging, including halyards, leads to the large, comfortable cockpit to make sail handling an easy, single handed operation. And when hard on the wind, twin dagger boards, combined with hull shapes, allow very little leeway.
The helm is extremely well balanced, responsive, and precise under both power and sail. The articulated engine makes docking and maneuvering in tight quarters a pleasure. The Witness 35 will turn in her own length and, most unusual for any sailboat, will hold a straight course in reverse. Yet, in addition to the advantages of coastal cruising, the Witness 35 is a true passage maker. She will sail you across the oceans of the world with safety, comfort, and surprising speed.
Full Disclosure
- During the better part of my lifetime I have lived, sailed, repaired and built a number of sailing craft. I have owned Oryoki since 2005 and spent these many years upgrading and improving her. My Mate and I have enjoyed our travels aboard. Since the passing of my Mate, much of the joy of sailing has gone with her. Advancing age has dulled my mind and sapped my energy as well.
- Time to end my trick at the wheel, swallow the anchor and take refuge in Fiddlers Green or the comfort of a rocking Lazy Boy.
- Some of the images I have posted show her canvas work at her prime. Time and the sun has taken its toll. Some restitching, some zippers need replacing, the sail cover needs replacing. Some paint and ding filling on the hard top and re-bedding of the toe rails is in order as well as some of the windows. If you don't enjoy fixing them, you better be rich.
- Oryoki is a pleasure to sail. Her shoal draft will take you into little coves where only the ducks and Blue Herons will be found. And should you find yourself having to beat to weather, her high bridge deck just about eliminates the pounding sometimes associated with cats. Her enclosed cockpit makes fair sailing even in foul weather. She dries out well and sits upright and level on her mini keels. Nice to know should you find yourself aground on a falling tide. (Some say if you have never run out of water you've never sailed. ) And should you be bouncing off the bottom you'll be grateful for the heavy layup. Time To haul? Her 2'2" draft makes her an easy boat to careen for a quick scrub. Or haul? Her 17'beam makes finding a yard an easier chore.
- Blue Water sailing? One of her sister ships is touring Europe and the Med, another in New Zealand.
- Did I mention the Galley? Simmering a sauce, baking bread or grilling a fish the Force 10 stove is a Chef's delight. Ample storage for all things culinary for a day trip or longer. Water conserving foot pumps leave both hands free to do the job.
- Whether you are looking for your first boat or your last, Thank you for your consideration. Whatever choice you make, I'm certain it will be the right one.
Specifications
| Name | S/V ORYOKI |
| Make | Witness |
| Model | 35 |
| Year | 1984 |
| Type | Multihull Sailboat |
| Builder | Witness Catamarans (USA) |
| Designer | Lock Crowther |
| Construction | Hulls one piece hand-laid fiberglass cored with PVC closed cell foam. Deck & Superstructure is one piece hand laid fiberglass cored with a PVC foam core. |
| Cabins | 2 |
| Heads | 1 |
| Galley | Down |
Dimensions
| Loa | 36.67 ft / 11.2 m |
| Lwl | 33.75 ft / 10.29 m |
| Beam | 17.00 ft / 5.18 m |
| Headroom | 4'6"/6'2" |
| Draft | 2.16 ft / 5'8" board down |
| Mast Height | 49' |
| Bridgedeck Clearance | 29" |
Tankage
| Fuel Tanks | 2 x 30 usg + 11 gallon polyethylene day tank with gauge & sender |
| Water Tanks | 2@ 30 usg |

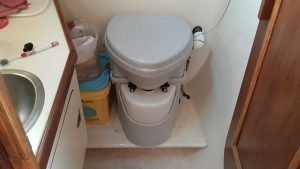

| Holding Tanks | Composting Head |
Performance
| Engines | Honda BF15 XXXL shaft |
| Engine Hours | 1148 |
| Fuel Consumption | .75/h |
| Wiring | 110V |
| Displacement | 17,500.00 lb / 5,216 kg |
| Speed | ~6mph |
| Sails | Fully Battened Main With Dutchman furling system 2 x Roller Furling Head Sails - 110% 1050 Square foot asymmetrical spinnaker with snuffer, |

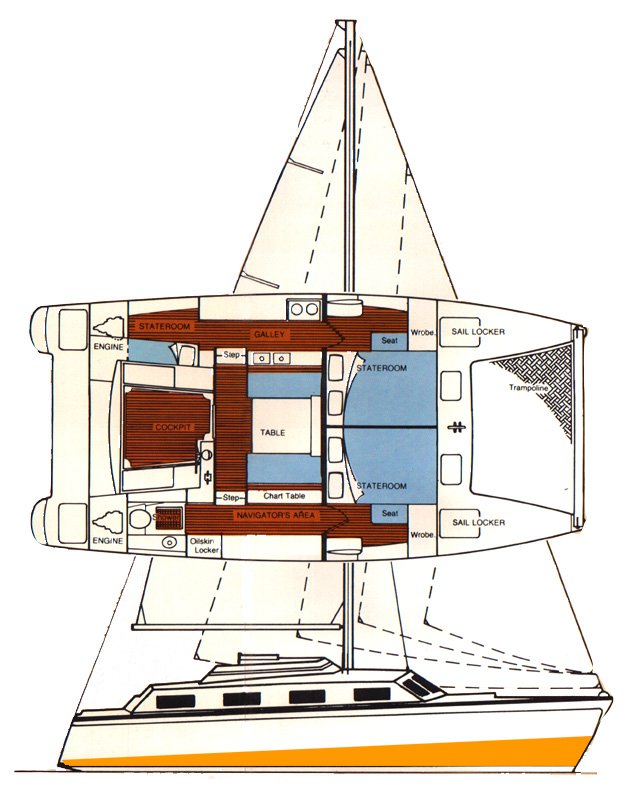

Layout Diagram

Inventory
Construction
- Hand-laid, one-piece hulls; thickness tapers from the shoes to 1" at the sheer
- PVC structural foam sandwich construction stiffens and insulates the hulls
- Deck and bridge deck cored with structural foam for stiffness and insulation
- All bulkheads and floorboards bonded to the hulls for added strength and rigidity
Accommodations
- Interior spaces include salon, galley, and enclosed cockpit (details below)

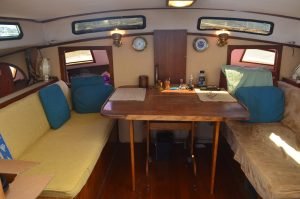

Salon
- Fore and aft settees facing each other
- Hinged dining table on centerline
- Table configurable to seat 2 / 3 / 4 people
- Table includes storage compartment and can accommodate a standard sewing machine base
- Storage below settees accessible from navigation area and galley
- Four fixed ports forward and two 26" x 18" fixed ports
- Large sliding companionway hatch
- Access to hulls via three steps and access from cockpit by one step

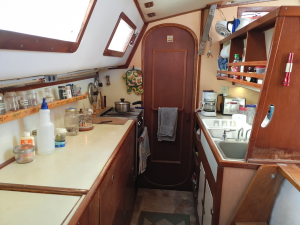

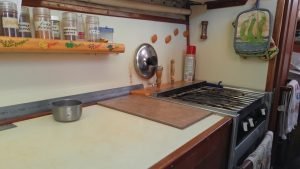

Galley
- Force 10 two-burner stove with oven and broiler
- Top-loading 12V refrig/freezer, Waco CB-40 liter
- Two stainless sinks
- Fresh and manual saltwater foot pumps
- Approximately 6 feet of counter space with storage below
- Dish and glass storage above counter

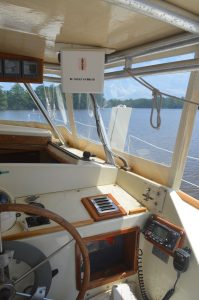

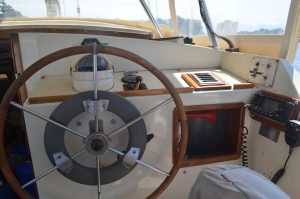

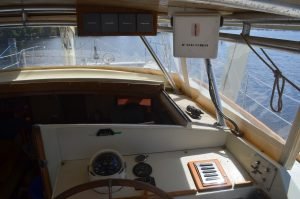

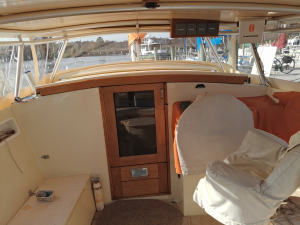

Cockpit

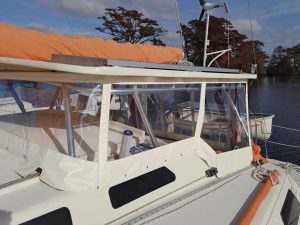

- Totally enclosed cockpit with hard top, full windows and screening

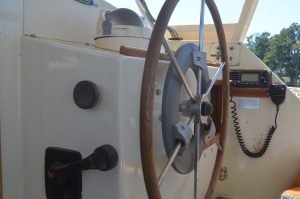

- Edson chain/cable steering system with teak-rimmed stainless wheel

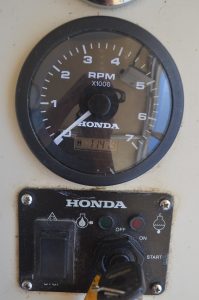

- Single helm station located forward to starboard with swivel helm seat, engine instrumentation and controls

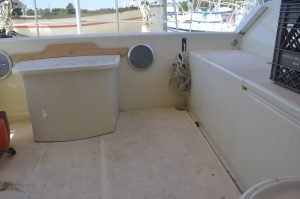

- Engine access
Electronics

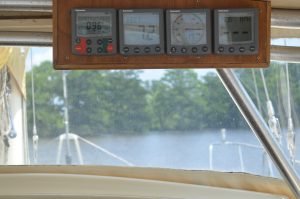

- RayMarine instrument pack:
- Speed, depth, wind; Flux Gate Compass
- Autohelm ST6000 autopilot with X-5 Smart Pilot
- Furuno 1615 RADAR (2017)
- 6" Plastimo steering compass
- Standard Horizon VHF radio
- Matrix AIS/GPS Standard GX 2200, 25 Watt
- Amplified FM/TV antenna mast mounted
- 23" LCD flat screen TV/DVD
- AM/FM/CD Radio
Electrical
- 12V DC and 115V AC system with 30 amp shore power connection
- Custom distribution panel with 20 DC breakers
- 6 AC breakers
- Amp meter and voltmeters
- Digital battery monitor
- Engine starting battery with parallel switch
- 2 × 100 Ah LiFePO4 12V batteries
- 4 × 85 W Kyocera solar panels mounted on hard top
- Wind Generator for when the wind blows and the sun don't shine,
- 1 × 75 W solar panel on stern rail
- 1000 W pure sine wave inverter
- LED tri-color masthead running and automatic LED anchor light
- Deck-level LED running lights and LED foredeck light
- Steaming lights
Deck & Hull
- Deck and bridge deck cored with structural foam for stiffness and insulation
- Hard top and cockpit enclosure details as listed under Cockpit
Sails & Rigging
- Fully Battened Main With Dutchman furling system
- 2 x Roller Furling Head Sails
- 1050 Square foot asymmetrical spinnaker with snuffer,

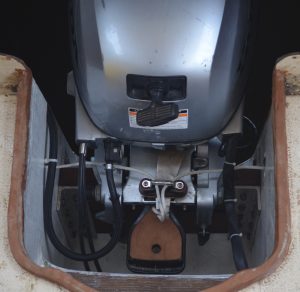

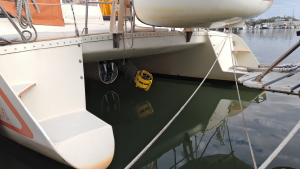

Engines & Mechanical

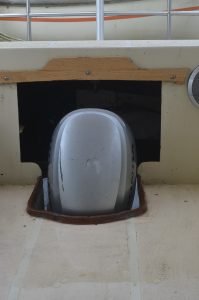

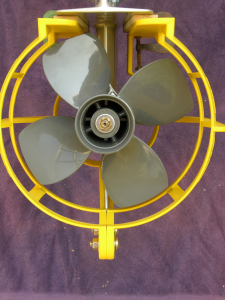

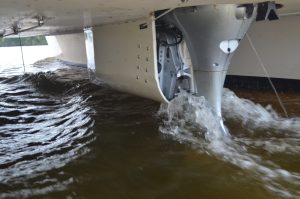

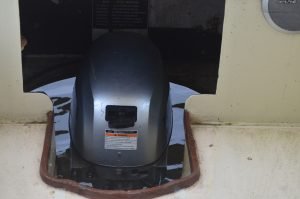

- Honda BF15 XXX-LS retractable engine mounted in center nacelle
- Power tilt and lift
- Engine responds to helm control
- Spares included
- Engine stand included
- Fitted so engine can be removed and secured to custom engine stand and maintained in cockpit as needed
Tender
- Tender not included in sale
- 8' Trinka tender
- Two sets of oars
Safety
- All USCG currently required safety equipment
Anchor & Docking
- Two bow rollers
- 22 kg Rockna anchor
- 35 lb Delta anchor with 100' chain and 250' 5/8" rode
- Fortress 23 anchor with 200' 5/16" HT chain/rode
- Sea Tiger 555A manual windlass
- Killet
- Bridle
- Docking lines - 2 sets.
Miscellaneous
- Two aluminum 20 lb horizontal propane tanks in vented forward deck locker.
