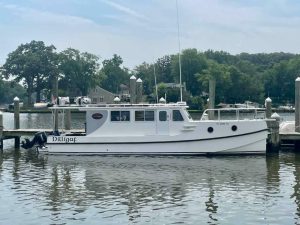

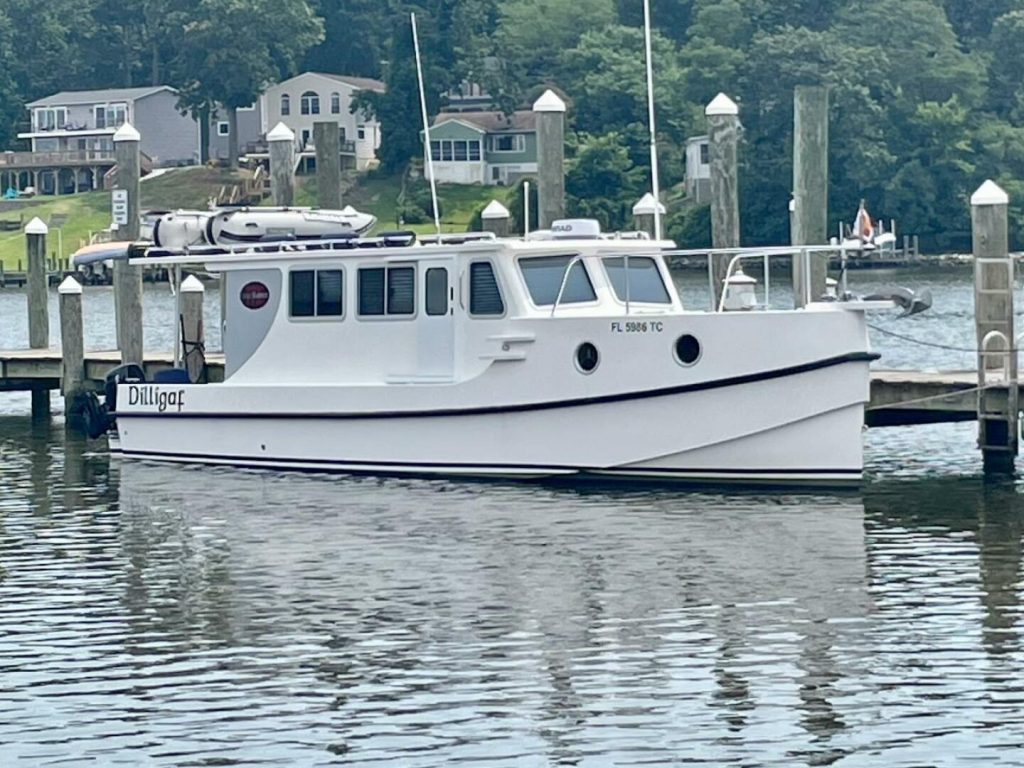

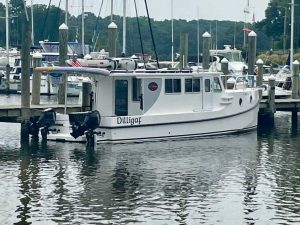

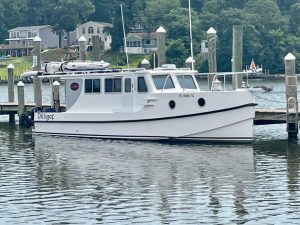

M/Y Dilligaf is a Pasadena, Maryland based 2021 Great Harbour TT35 For Sale By Broker. Responses to inquiries may come from a broker who is representing the owner as a fiduciary. This owner requires financial settlement only. No trades.

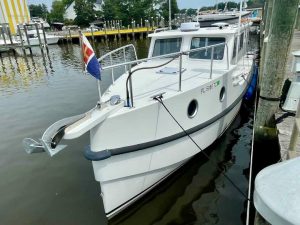

The Great Harbour TT35 packs all the amenities of a comfortable live-aboard trawler into a highly versatile, trailerable boat with endless possibilities. From local gunkholing to a Great Loop adventure, the TT35 delivers. She features a center queen berth, a head with a separate shower, and a galley. Call for a showing today!
Videos
Specifications
| Name | M/Y Dilligaf |
| Make | Great Harbour |
| Model | TT35 |
| Year | 2021 |
| Type | Monohull Powerboat |
| Builder | Great Harbour |
| Construction | Fiberglass |
| Cabins | 1 |
| Heads | 1 |
| Galley | Up |
Dimensions
| Loa | 35ft 8in / 10.87m |
| Lwl | 34ft 1in / 10.39m |
| Beam | 10ft 4in / 3.15m |
| Headroom | Cockpit 83 in; Galley 79 in; Helm 77 in; Head 78 in; Forward cabin 72 in |
| Draft | 1ft 6in / 0.46m |
Tankage
| Fuel Tanks | 128 gallons |
| Water Tanks | 50 gallons |
| Holding Tanks | 12 |
Performance
| Engines | 2 x 60HP Suzuki DF60AF 2021 |
| Engine Hours | 284 / 284 |
| Generator | Honda EU3200i portable, 3.2 kW |

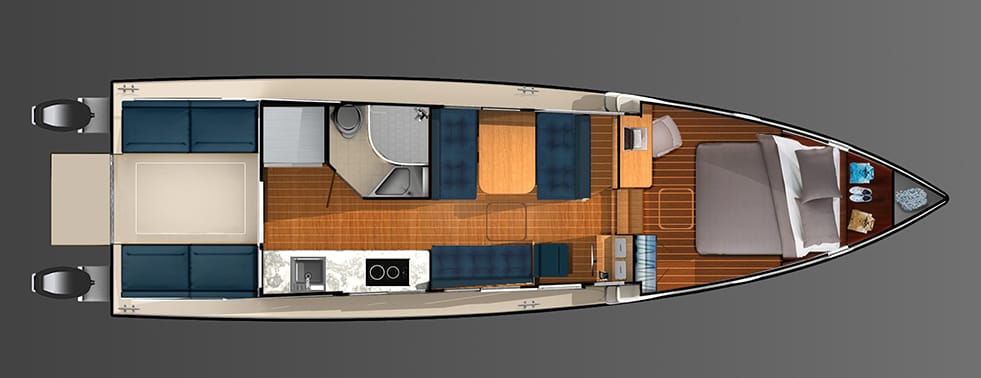

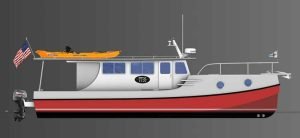

Layout Diagram
Inventory
Vessel Overview
- Great Harbour TT35 trailerable live aboard trawler
- Center queen berth
- Head with separate shower
- Fully equipped galley
- Powered by twin Suzuki outboards
- Suitable for local gunkholing to Great Loop adventures
Media Links
- Virtual Tour: http://www.bit.ly/TT35VIRTUAL
- Video Tour: http://www.bit.ly/TT35VIDEO
- Slideshow: http://www.bit.ly/TT35SLIDE
- Manufacturer’s Tour: http://www.bit.ly/TT35MFGTOUR
- Drone Video: http://www.bit.ly/TT35DRONE
- Great Lakes Boating Review: http://www.bit.ly/TT35GLBR
- Cruising Odyssey Review: http://www.bit.ly/TT35COR
- Boating Magazine Review: http://www.bit.ly/TT35BMR
- Passagemaker Review: http://www.bit.ly/TT35PMR
Advanced Design Features
- Closed transom to eliminate cockpit slope and standing water issues present in earlier models
- Central air conditioning to better cool forward cabin versus earlier cabin-top unit
- Traditional dinette convertible berth added in later models; port door removed to allow dinette functionality

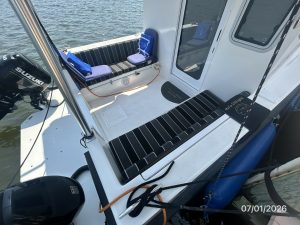

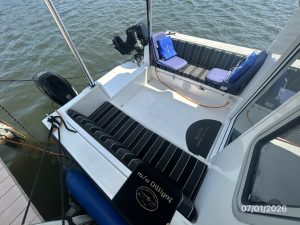

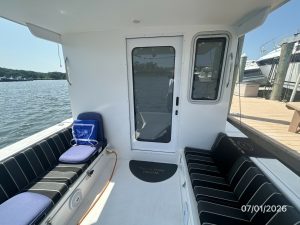

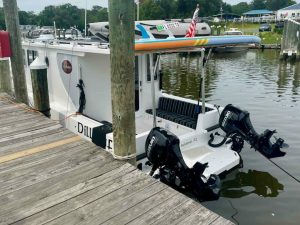

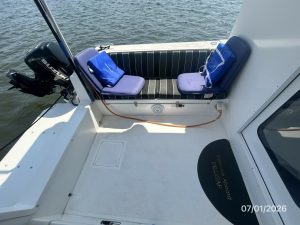

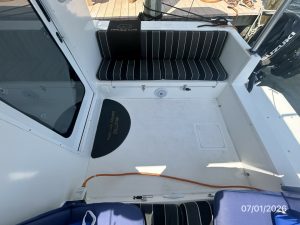

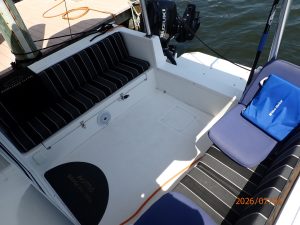

Cockpit
- Full length hardtop overhead
- Two bench seats with cushions (port and starboard)
- Two large lockers underneath bench seats

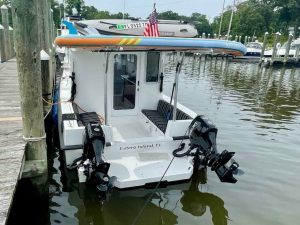

- Walkthrough transom to swim platform (cut-away transom)

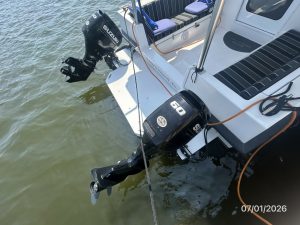

- Twin outboard engines mounted on port and starboard
- Two stereo speakers
- Overhead LED light
- 30 amp shore power plug
- Two scuppers
- Sliding door to deck house/galley
- Opening window to galley
- Two hand holds at forward bulkhead (port and starboard)
- Headroom 83 inches
- Cockpit protected by extension of deck house hard top
Deck House
- Teak and holly sole and wainscot paneling throughout deck house
- Overhead LED lighting throughout
- 120 VAC outlets throughout
- Windows providing 360 degree visibility
- Flat screen TV mounted on aft bulkhead
- AC vent mounted in deck house

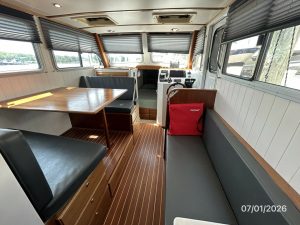

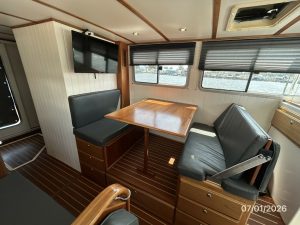

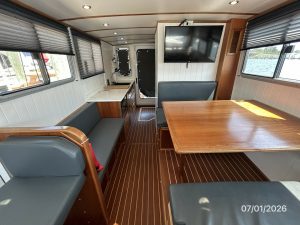

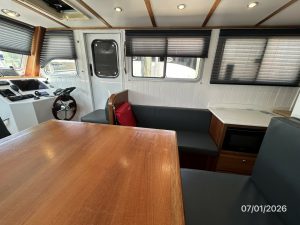

Salon

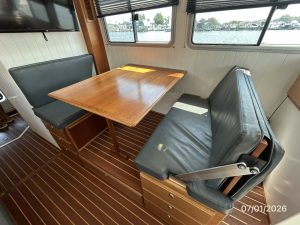

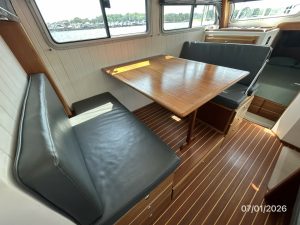

- Dinette that seats four and converts to double berth (41 x 77 inches)
- Dinette forward seat with reversible back to provide forward-facing seating
- Dinette aft seat
- Teak table
- Storage lockers and drawers
- 120 VAC outlet

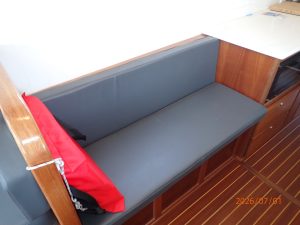

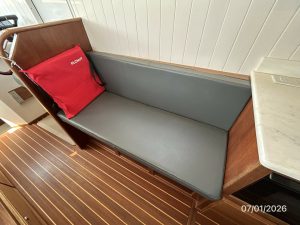

- Seat opposite dinette with storage underneath

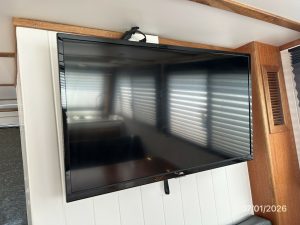

- TLC 33 inch flatscreen TV, model 32S334
- Six overhead LED lights
- Countertop with chart lamp
- AC register
- Two opening overhead hatches with shades and screens
- Three opening windows with shades and screens
- Three fixed windows with shades
- One sliding door with fixed window and shade
- Folding step next to helm
- Companionway to forward cabin
- Teak & Holly sole

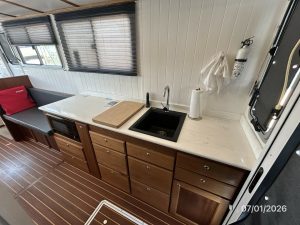

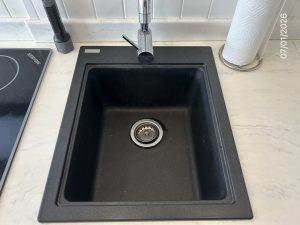

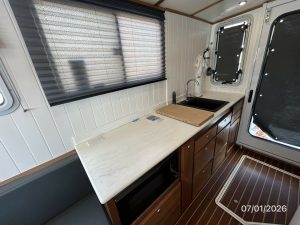

Galley
- Quartz countertop
- Sink with hot and cold running water

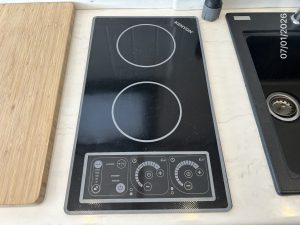

- Kenyon 2-burner induction cooktop

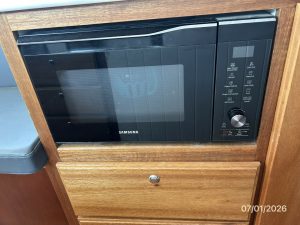

- Samsung microwave/convection oven

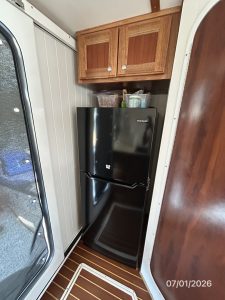

- Frigidaire refrigerator/freezer apartment size 10.1 cu.ft., model FFET1022UP
- Top mounted locker above refrigerator/freezer

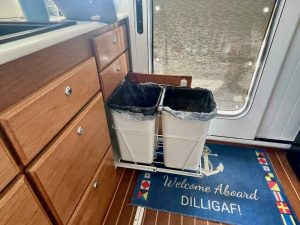

- Slide out trash bin

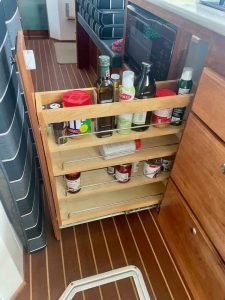

- Slide out spice rack
- Nine drawers
- Two 120 VAC receptacles
- Two opening windows with shades and screens
- Three overhead LED lights
- Teak & Holly sole
- Fire extinguisher
- Headroom 79 inches

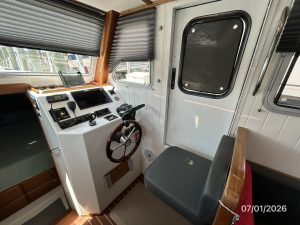

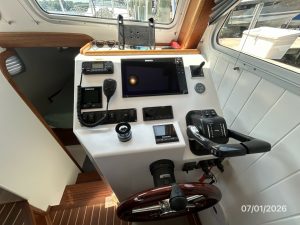

Helm
- Ultraflex UP series helm with wood and stainless steel wheel
- Engine throttle and pitch controls
- Engine start/stop panel
- Simrad chartplotter/radar display and control panel

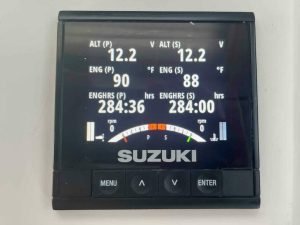

- Suzuki engine multi-function display
- Simrad autopilot control panel
- Bow thruster controls panel

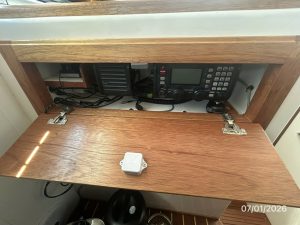

- ICom VHF marine radio, model IC-M330
- ICom HF single side band radio, model IC-M802
- Fusion stereo radio control panel (Bluetooth and Sirius capable)
- Victron Energy battery monitor, model BMV 702

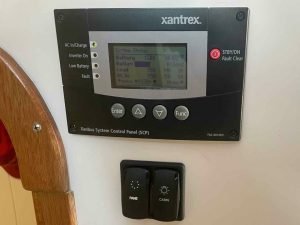

- Xantrex Xanbus system (SCP) battery charger/inverter control panel
- Maxwell anchor windlass controls
- Dometic air conditioning control panel
- Two Fusion stereo speakers
- Fold down captain’s seat
- Fold down footrest
- Bench seat with reversible back shared with dinette
- Headroom 77 inches
- Sliding door for quick access to foredeck

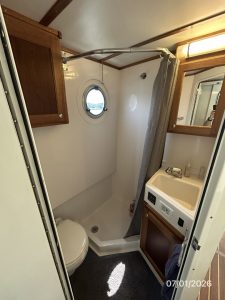

Head
- Sink with hot and cold running water
- Over sink medicine cabinet with mirrored door and light above
- Under sink locker
- Shower stall with curtain
- Shower wand with hot & cold pressurized water and bracket (doubles as sink spigot)
- Raritan Marine Elegance electric marine head
- Head flush controls
- Waste control panel / tank monitor
- Top mounted locker above head
- Bath towel rack
- Hand towel ring
- Toilet paper holder
- 120 VAC outlet
- Light switch
- Opening port hole
- Non-skid flooring
- Headroom 78 inches

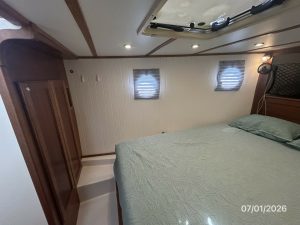

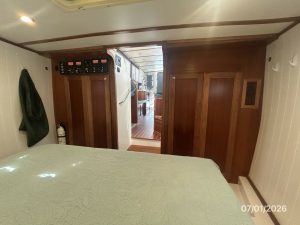

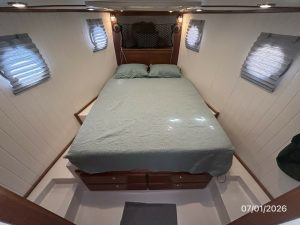

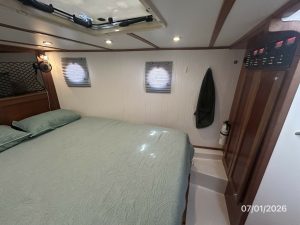

Forward Cabin
- Queen centerline berth 80 x 60 inches
- Four drawers and storage locker under berth
- Shelf with locker underneath forward of berth
- Two hanging lockers (port and starboard, aft bulkhead)
- Opening overhead hatch with shades and screens
- Four opening ports with shades and screens
- Six overhead LED lights
- Two reading lamps
- AC register

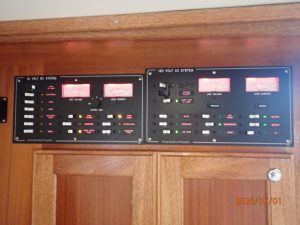

- 12 VDC distribution panel
- 120 VAC distribution panel
- Maxwell windlass breaker
- Three 120 VAC outlets
- Fire extinguisher
- Anchor locker access panel
- Headroom 72 inches

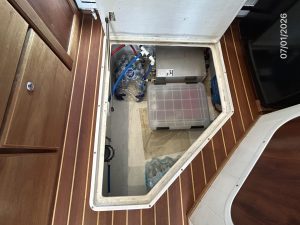

Utility Locker
- Large utility locker located along centerline accessed from hatch in galley deck
- Houses boat electrical and water systems
Electrical
- 12 VDC house system with distribution panel
- 120 VAC house system with distribution panel
- Honda EU3200i portable generator, 3.2 KW
- 120 VAC receptacles throughout
- LED lighting throughout
- Running/navigation lights
- Six 6 VDC batteries, 190 Ah each (configured as 3 parallel 12 VDC banks; 570 Ah total)
- Blue Sea Systems breaker panel

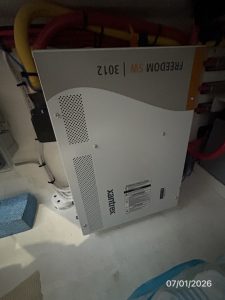

- Xantrex Freedom SW battery charger/inverter, model 3012

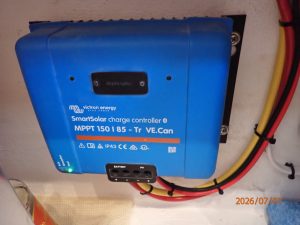

- Vitron Energy SmartSolar charge controller, model MPPT 150 | 80 – TR
- Blue Sea Systems remote battery switch, model ML-RBS

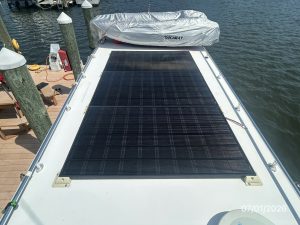

- Three solar panels, 300 watts each (900 watts total)
- Solar PV breaker box
- Shore power receptacle SmartPlug 30 amp
- Shore power line SmartPlug 30 amp
- TV coaxial cable receptacle
- Windlass circuit breaker
Mechanical

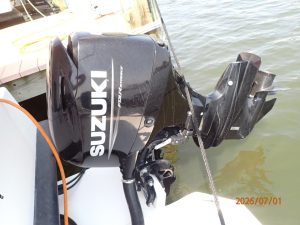

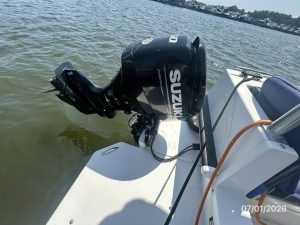

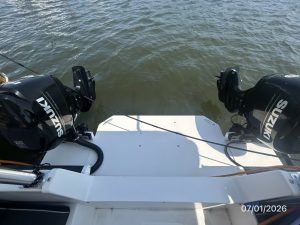

- Two Suzuki outboard engines, model DF60AV
- Engine power: 60 hp each
- Engine hours: 284.36 hours (port), 284.00 hours (starboard)

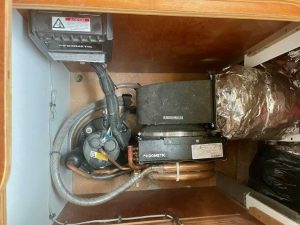

- Dometic reverse cycle air-conditioning system 16,000 BTU, model DTG16-410A

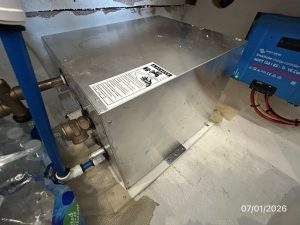

- Kuuma hot water heater 6 gal, model KWHTR6A120HSF15A150
- Venus waste water tank system, model WWS4212B
- FloJet house water pump 3.5 gpm
- Jabsco house water accumulator tank 1 L, model 30573
- FloJet washdown pump 3.5 gpm, model 04305144E
- Primetime AC water pump, model PT-115VT-60-W

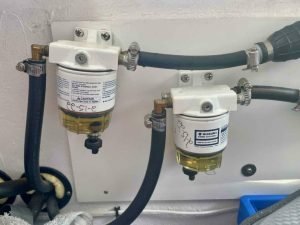

- Two Suzuki fuel filter/water separators, P/N 99105-20006
- Big Dog Marine fuel tank vapor filter, P/N 999CC65X1
- Frigidaire refrigerator/freezer (apartment size 10.1 cu.ft., model FFET1022UP) listed under mechanical as installed equipment

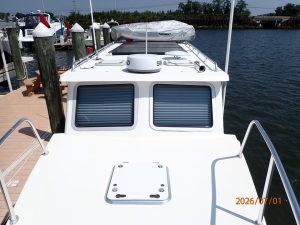

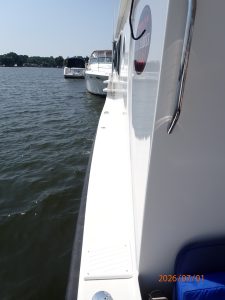

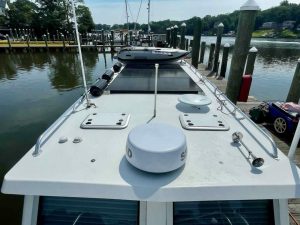

Deck
- Four fixed deck cleats: two bow, two stern
- Four fold down deck cleats: two mid-ships, two swim platform
- Max Set 10 plow anchor
- Chain locker with forward cabin access
- Maxwell electric windlass
- Wash down spigot at bow
- Deck washdown system
- Swim platform
- SeaDog horn cabin top mounted
- Simrad radar transceiver cabin top mounted
- Two radio antennas (VHF & SSB)
- Simrad GPS antenna cabin top mounted
- Sirius XM Galaxy antenna cabin top mounted
- SeaWatch TV antenna cabin top mounted
- Running lights
- Aluminum bow rail
- Aluminum hand holds on cabin top port and starboard
- Three aluminum hand holds in cockpit and starboard door area
- Holding tank pump out (port side mid-ship)
- Water fill (starboard side mid-ship)
- Fuel fill (port side aft)
- Tender cradle on cabin top
- Board rack on cabin top
- Dock lines
- Fenders
- Wash down gear
- Cabin top houses antennas, navigation lights, solar panels and tender
Safety
- Four near shore PFDs
- Emergency signal kit (gun with flares, 5 hand held flares, 1 hand held smoke signal)
- Kiddie marine chemical fire extinguisher type 1-A:10B:C
- Kiddie marine chemical fire extinguisher type B:C size 1

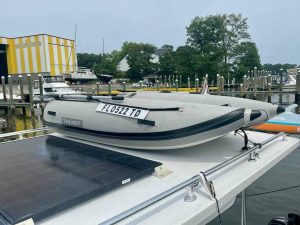

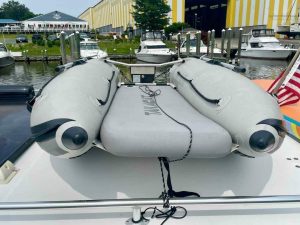

Tender
- 2025 Takacat T300LX tender, 9'10" overall
Disclaimers
- Vessel details offered in good faith but accuracy and vessel condition are not guaranteed; buyer should verify through agents or surveyors
- Engine and generator hours are representations from listing and owner and should be verified by purchaser or purchaser’s agent
