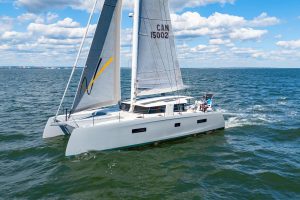

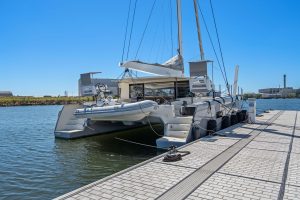

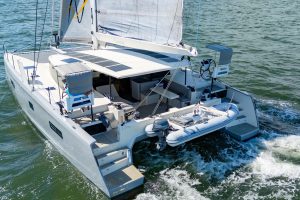

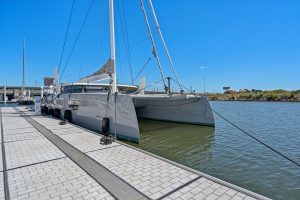

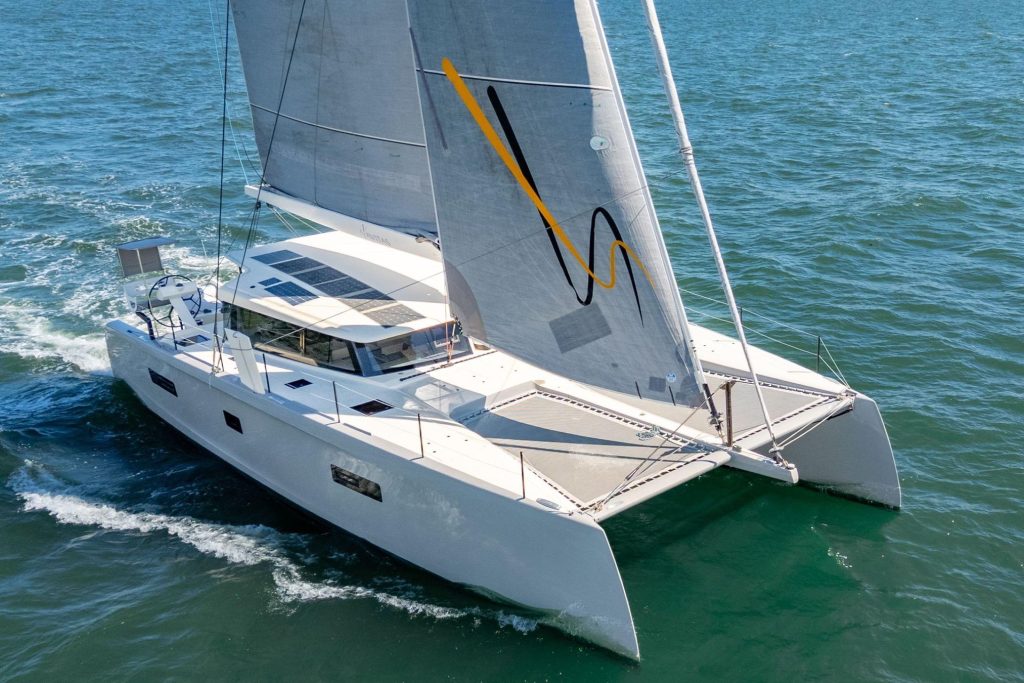

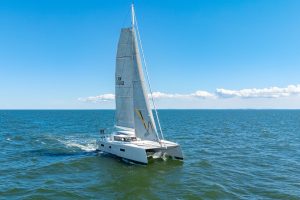

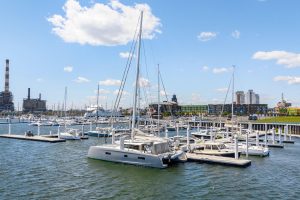

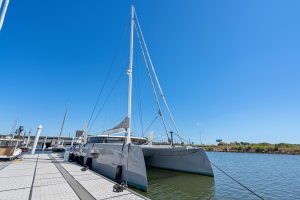

S/V Navitas is a St Augustine, FL, US based 2019 Itacatamarans 14.99 For Sale By Broker. Responses to inquiries may come from a broker who is representing the owner as a fiduciary. This owner requires financial settlement only. No trades.
The 2019 Itacatamarans 14.99 Navitas utilizes epoxy construction and carbon structures to deliver a world-class catamaran, balancing competitive sailing performance and bluewater capability with elegant design and comfortable appointments.
Navitas’s current and original owners are meticulous in their stewardship of the boat; they ordered her exceptionally well-equipped and have kept her in Bristol fashion. Navitas represents a tremendous value for discerning sailors looking for a global cruising catamaran, fully equipped and professionally maintained.
Designed by award-winning naval architect Francois Perus and built by craftsmen in Fano, Italy with decades of experience in yacht construction, Navitas embodies a passion for sailing that cannot be matched.
Contact us today to schedule a guided tour of this exceptional sailing vessel!
Videos
Specifications
| Name | S/V Navitas |
| Make | Itacatamarans |
| Model | 14.99 |
| Year | 2019 |
| Type | Multihull Sailboat |
| Builder | Itacatamarans (Italy) |
| Designer | Itacatamarans in-house design team |
| Construction | Fiberglass hulls with composite sandwich deck and foam core |
| Cabins | 3 |
| Heads | 2 |
| Galley | Up |
Dimensions
| Loa | 14.99 m |
| Lwl | 14.00 m |
| Beam | 7.50 m |
| Headroom | 2.05 m |
| Draft | 1.10 m (hull); daggerboards to 2.50 m when down |
| Mast Height | 22.5 m above waterline |
| Bridgedeck Clearance | 0.90 m |
Tankage
| Fuel Tanks | 600 L total |
| Water Tanks | 600 L total |
| Holding Tanks | 200 L total |
Performance
| Engines | 2 x Yanmar 3JH40 40 HP |
| Engine Hours | 2467 / 2467 |
| Generator | Fischer Panda 8000i PMS 5.2 kW DC |
| Gen Hours | 633 |
| Wiring | 110V |
| Displacement | 12,500 kg |
| Speed | Cruising 9-10 knots, top 15 knots under sail |
| Sails | North Sails 3DI Endurance 760 91 m square top mainsail with two sets of single line reefs North Sails 3DI Endurance 760 43 m self tacking jib with UV shield North Sails 3DI Endurance 760 19 m staysail North Sails Code 55 3DI 140 m (55 percent SMG) new 10/2023 North Sails A2 Airx asymmetric spinnaker 190 m with sock |

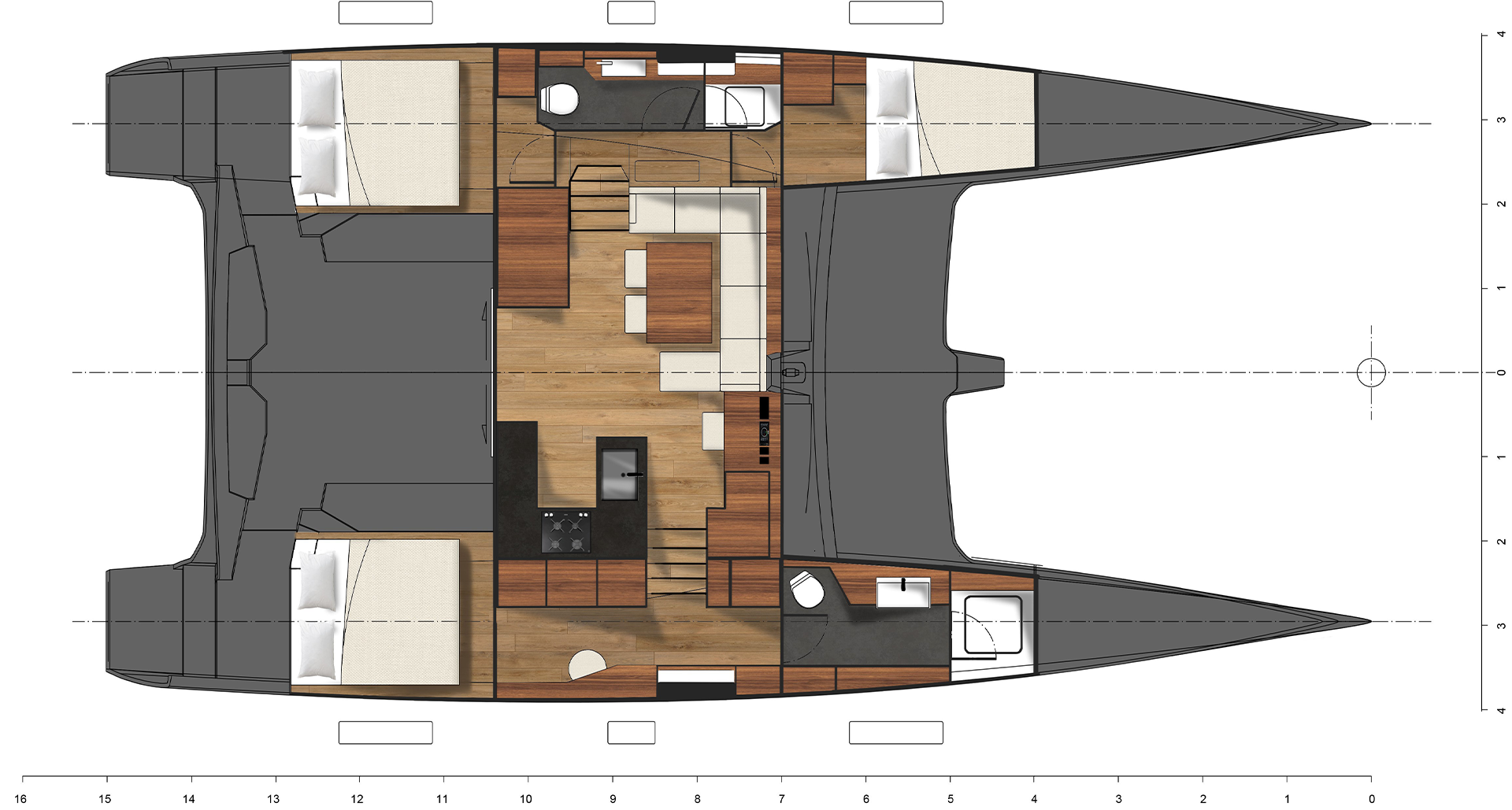

Layout Diagram
Inventory
Overview
- 2019 Itacatamarans 14.99 Navitas
- Epoxy construction with carbon structures; bluewater-capable cruising catamaran balancing performance and comfort
- Designer: Francois Perus
- Builder: craftsmen in Fano, Italy
- Exceptionally well-equipped and professionally maintained
Construction
- Hulls, deck, and roof: E-glass, Core cell sans foam core, epoxy resin infusion, post-cured
- Carbon primary bulkheads, carbon longitudinal stringers, chain plates, daggerboard casings
- Carbon composite longeron
- Forward crossbeam: laminated carbon I-beam encased in composite shell
- All thru-hulls and deck fittings installed in solid laminate
- Watertight bulkheads and crash boxes in forepeak and lazarette lockers
- Carbon composite forward crossbeam and martingale with Kevlar rigging
- Carbon composite longeron/bowsprit with built-in primary anchor roller

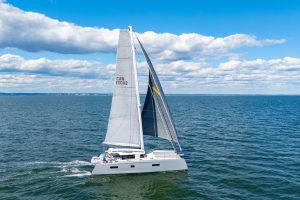

Sails
- North Sails 3DI Endurance 760 91 m2 square-top mainsail with 2 sets of single-line reefs
- North Sails 3DI Endurance 760 43 m2 self-tacking jib with UV shield
- North Sails 3DI Endurance 760 19 m2 staysail
- North Sails Code 55 3DI (55% SMG) 140 m2 (new 10/2023)
- North Sails A2 Airx asymmetric spinnaker 190 m2 with sock
Rigging Standing
- White lacquered Lorima carbon mast (no spreaders)
- 2x Kevlar cap shrouds and 2x Kevlar lower shrouds
- White lacquered Axxon carbon canoe V-boom
- Harken mainsail Battcar B system
- Harken recessed crossbow self-tacking solent track
- Solent Facnor LX structural roller furler on stainless rod headstay
- Facnor FX7000+Fast continuous line code sail/asymmetrical furler
- Facnor FX7000+Fast continuous line staysail furler
- Staysail rigging: halyard, Spinlock halyard clutch, Harken longeron padeye
Rigging Running
- All sail control lines run in conduits below deck for one-person cockpit operation

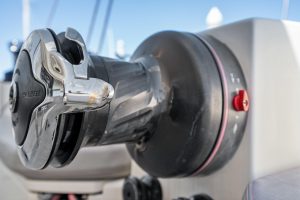

- 1x Harken Rewind Radial 60RWA 24V mainsail utility winch (main halyard, 2 reefs, topping lift, jib sheet)
- 2x Harken Rewind Radial 60RWA 24V bridal mainsheet and tender lift winches
- 2x Radial 60.2STA primary winches (flying headsails)
- 2x Harken Radial 50.2STEA 24V secondary winches (daggerboards/headsail furlers)
- 1x Harken Radial 50.2STA headsail halyard/outhaul winch on mast
- 10x Harken analog waterproof foot switches with custom CNC switch housings
- Spinlock rope clutches
- 2x Antal tender lift rope clutches
- 3:1 dual bridle mainsail sheets (built-in preventer and vang)
- Aramid running rigging

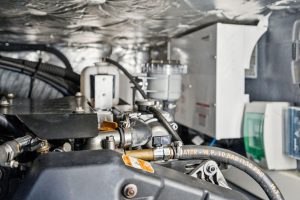

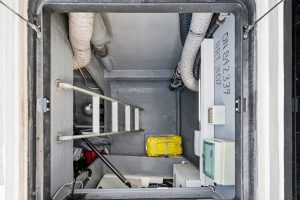

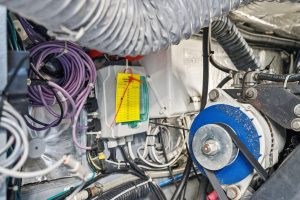

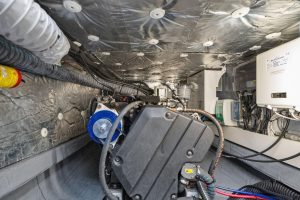

Engines

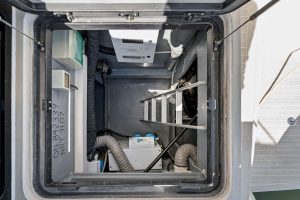

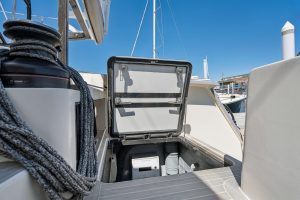

- Access via Seasmart carbon composite lazarette hatches in both hulls

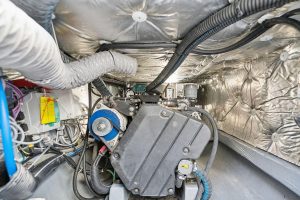

- 2x Yanmar 3JH40 40 hp common rail diesel engines (2,467 hrs [Sept 2025])
- 2x Yanmar B35 engine panels
- 2x Yanmar SD60 saildrives
- 2x 3-blade Flexofold folding propellers
- 2x ZF Marine Microcommander dual lever port/starboard electronic throttles
- 2x 12V/125Ah engine battery alternators
- 2x Mastervolt Alpha 24V 75 amp alternators
- 2x Optima RedTop 34R AGM engine batteries (new 2022)
- NMEA 2000 engine monitoring system
- 2x Racor fuel/water separators (one per engine)
- 2x additional fuel/water separators with sensors (one per engine)
- 2x Yanmar fuel filters
- 2x engine room exhaust blowers

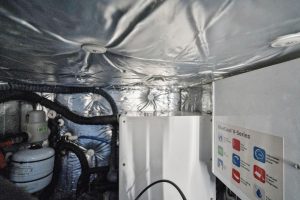

- Complete engine room vibration dampening and noise insulation

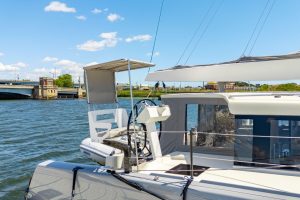

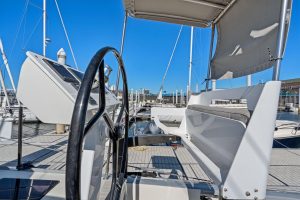

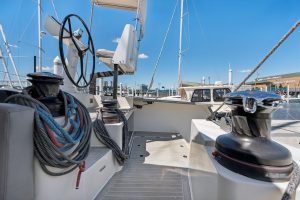

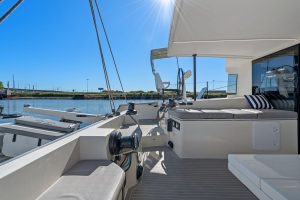

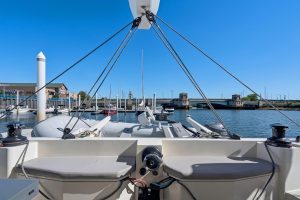

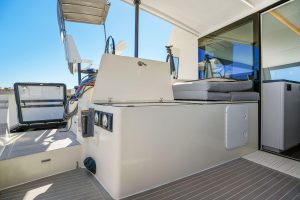

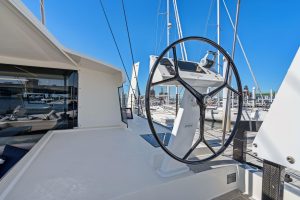

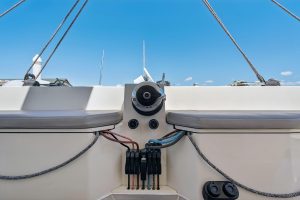

Steering
- 2x aluminum folding helm seats with backrests
- 2x composite helm consoles for compass, electronics, engine controls, sail management
- 2x JEFA steering pedestals
- 2x 100 cm GS composite steering wheels

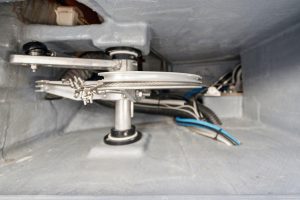

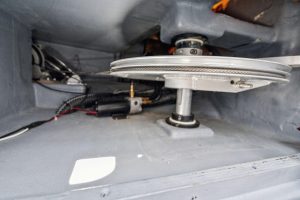

- JEFA cable and direct rod steering system for precise rudder feedback
- JEFA spade rudders on AISI 630 stainless 55 mm rudder stock with JEFA self-aligning bearings

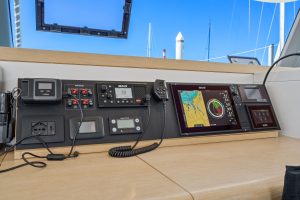

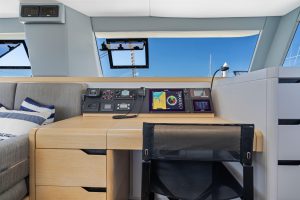

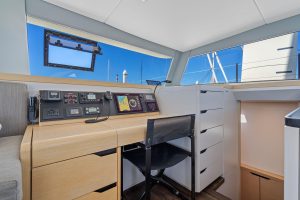

Electronics and Navigation Nav Station
- B&G Zeus 12 MFD with Wi-Fi
- B&G broadband 4G radar with mast-mounted radome
- B&G V50 VHF radio
- B&G H50 wireless VHF radio
- NAIS AIS Class B transponder
- NSPL 400 VHF antenna splitter
- B&G Triton autopilot controller with T3 hydraulic ram
- B&G WR10 wireless remote autopilot controller
- B&G DST800 transducer
- 2x B&G 20/20 MFD (salon bulkhead)
- GOFREE Wi-Fi module
- Iridium Go satellite phone with deck-mounted antenna

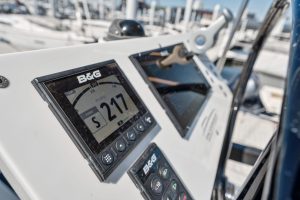

Electronics and Navigation Port Helm Station

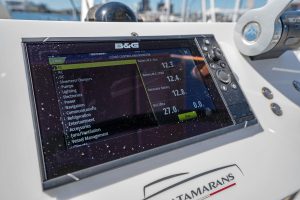

- B&G Zeus 9 MFD
- B&G Triton 5 MFD
- B&G Triton keypad autopilot controller

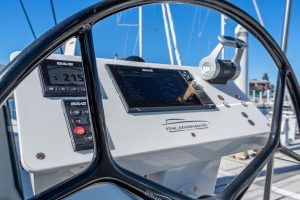

Electronics and Navigation Starboard Helm Station
- B&G Zeus 9 MFD
- B&G Triton MFD
- B&G Triton keypad autopilot controller

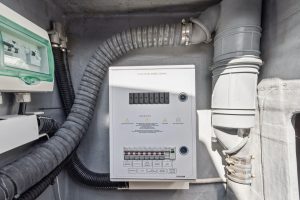

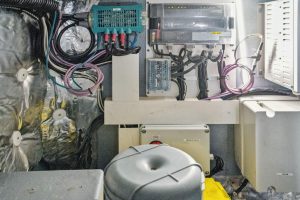

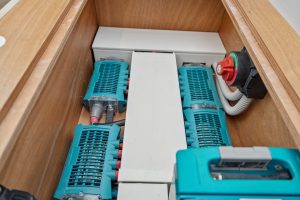

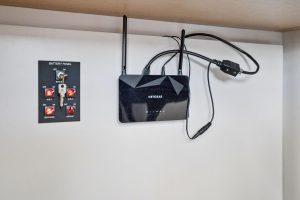

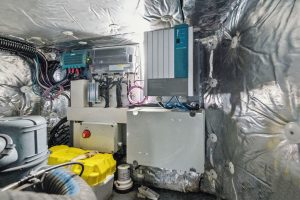

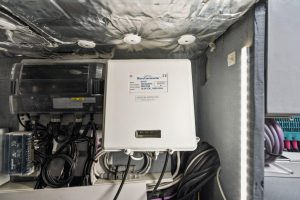

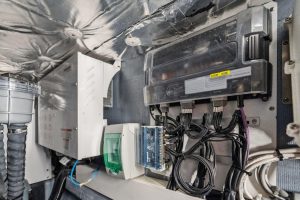

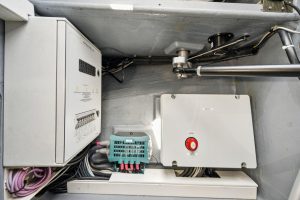

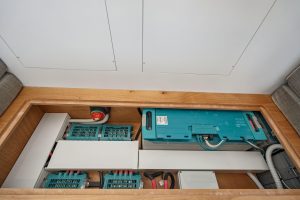

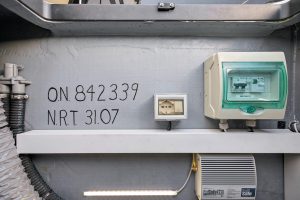

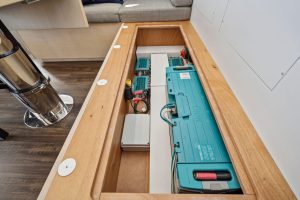

Electrical Systems
- 12VDC/24VDC/230VAC 50Hz Mastervolt/CZone digital switching system
- 14x Solbian SP118Q 118W solar panels (1.65 kW total) with optional non-skid film
- 2x Mastervolt MPPT SCM60 solar charge masters
- 1x 32 amp/50Hz/230V Mastervolt MASS GI 7.0 isolation transformer (shore power #1)
- 1x Mastervolt ChargeMaster Plus 24V/100 amp charger (shore power #2)
- 1x Mastervolt ChargeMaster Plus 24V/80 amp charger (shore power #2)
- 1x Mastervolt ChargeMaster 12V/35 amp charger (engines/generator charging from lithium service batteries)
- Shore power 2-input 50/60Hz 80-250 VAC
- Fischer-Panda 8000i PMS 5.2 kW DC generator (740 hrs as of 9/2025)
- Optima Red Top AGM generator battery (new 2023)
- 3x Mastervolt Ultra 24/5000 24V/180Ah LiFePO service batteries
- Prosafe 30 amp galvanic isolator (shore power #2)
- 2x Mastervolt 24/3500-100 Mass Combi Pro charger/inverters
- CZone access via B&G monitors (nav station, both helm stations, notebook, phone)
- CZone 5 touch screen with Wi-Fi at nav station
- 8x 230VAC interior outlets (including 2x GFI outlets)
- 4x USB interior outlets
- 2x 230VAC engine room outlets
- 1x 12VDC engine room outlet
- Quick LED dimmable interior and exterior lighting
- 3x shore cords with adapter

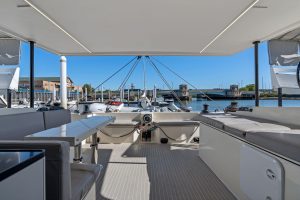

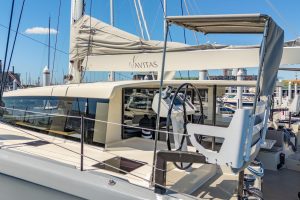

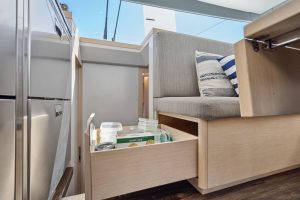

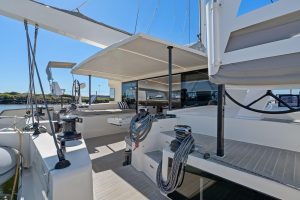

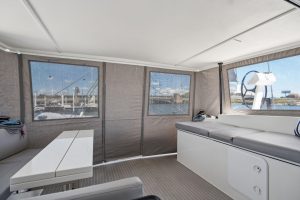

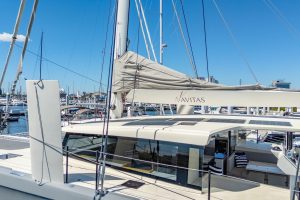

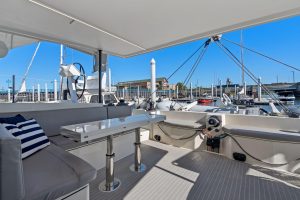

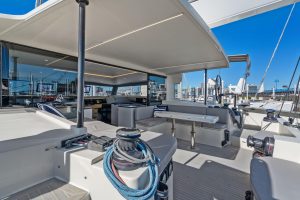

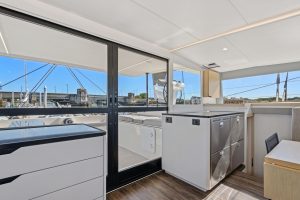

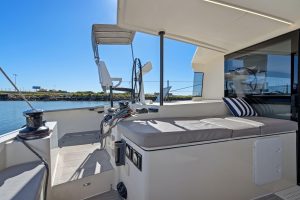

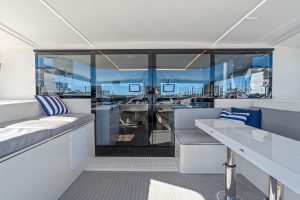

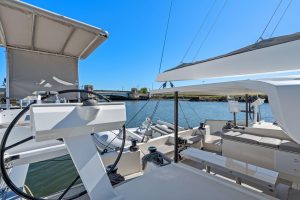

Cockpit
- Nautica F4 tinted tempered safety glass bulkhead (2x 105 cm) with sliding doors to salon
- Composite hardtop bimini
- Recess track bimini ceiling lights (dimmable)
- L bench seating to starboard with storage below and composite double leaf high/low sliding cockpit table
- Raised chaise lounge to port with storage beneath
- 2x bench seats on aft crossbeam with sail handling line storage beneath
- Sunbrella cockpit cushions (seat/backrest/chaise lounge/helm) (new 5/2023)
- Hot and cold transom shower
- Port and starboard transom carbon handholds
- Custom removable port and starboard helm sunshades

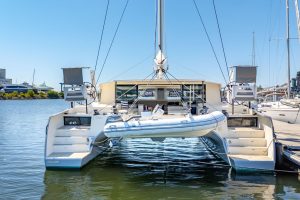

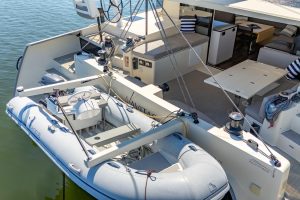

- Carbon composite tender davits with lifting lines, blocks, and Antal rope clutches

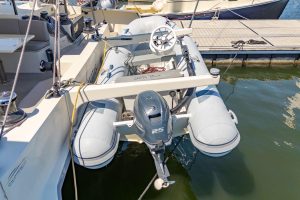

- Highfield CL380 BLT hypalon tender with FCT console
- Yamaha F25 electric start outboard motor
- Flexiteek cockpit sole (new 2021) and transom steps (new 2022)

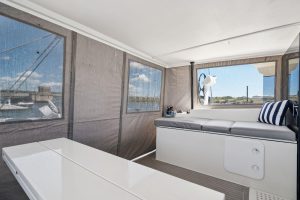

- Full cockpit enclosure
- 2x La Regista black composite folding director chairs

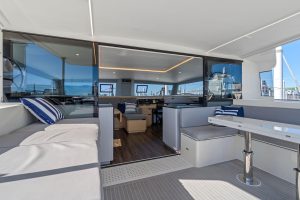

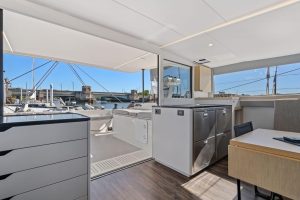

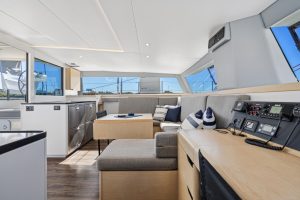

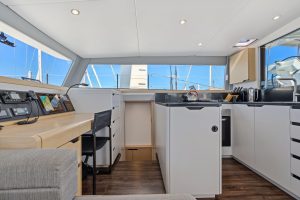

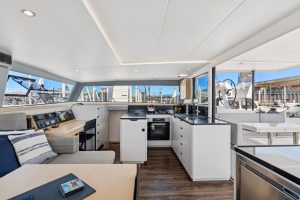

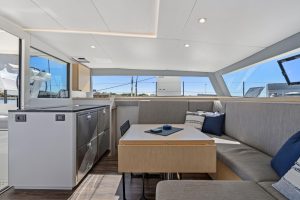

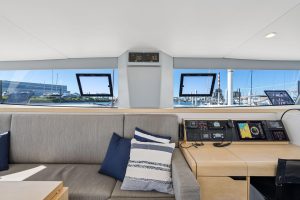

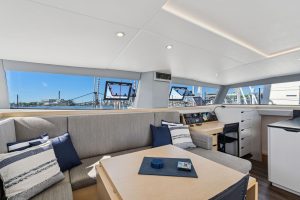

Salon and Nav Station

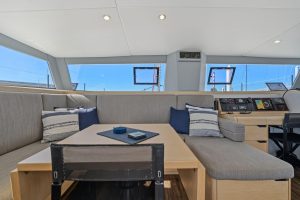

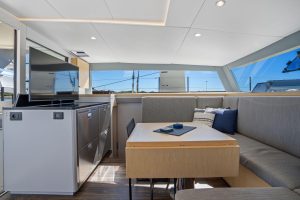

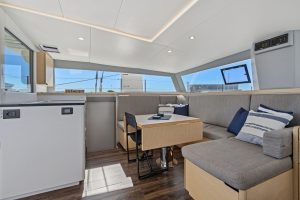

- Salon: 360-degree view via 8 mm tinted safety glass; custom Alpi wood furniture cored for lightness; U-shaped settee to port with storage; high/low double leaf sliding dining table converts to bed

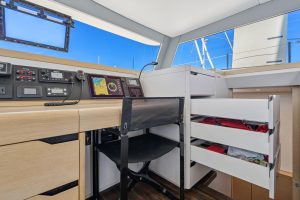

- Nav Station: forward to starboard; chart table with seat; electronic console; 1x 230VAC outlet and 1x USB outlet; adjustable red/white light; column of drawers and file cabinet storage

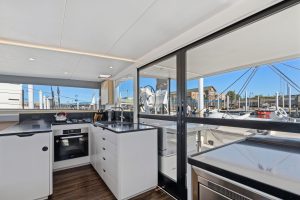

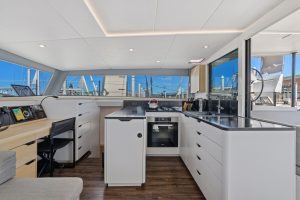

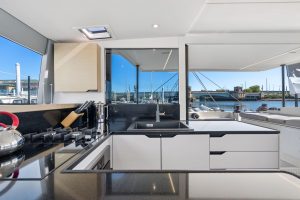

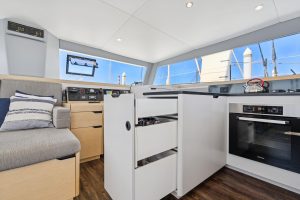

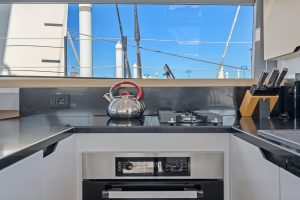

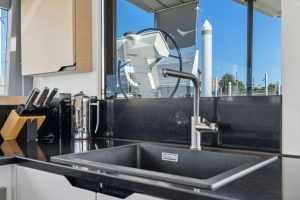

Galley
- White enamel cabinetry along port cockpit bulkhead with fridge and freezer
- Black quartz countertops; large Blanco Silgranit double sink with quality fixtures

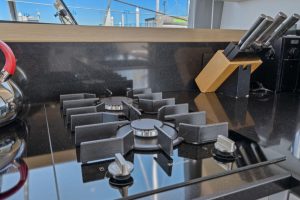

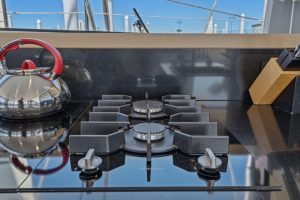

- Flush-mounted Miele 4-burner stove (2 induction, 2 propane)
- Flush-mounted full-size Miele convection oven
- Candy microwave oven

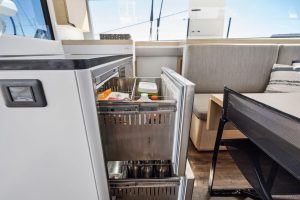

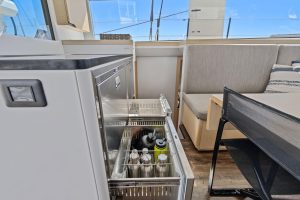

- Stainless Vitrifrigo DW180 two-drawer fridge
- Stainless Vitrifrigo DW180 two-drawer freezer
- TV electric lift with Samsung 50 Smart TV located behind fridge/freezer
- 2x 230VAC outlets

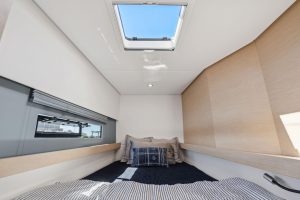

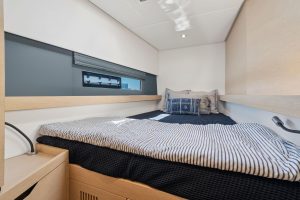

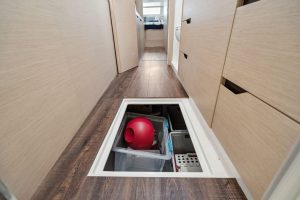

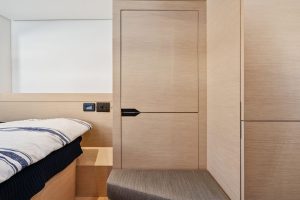

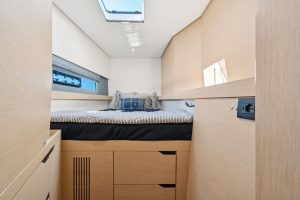

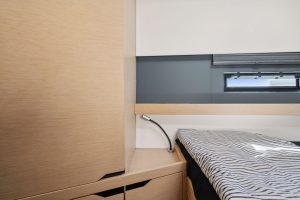

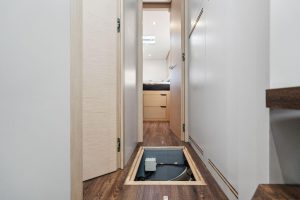

Staterooms and Accommodations

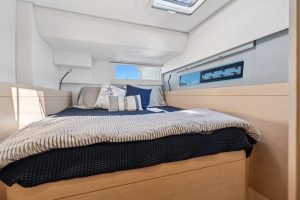

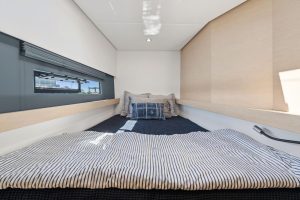

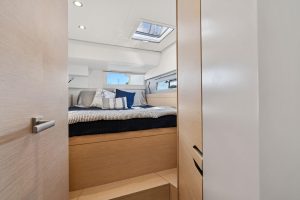

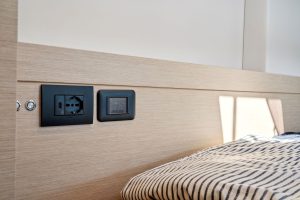

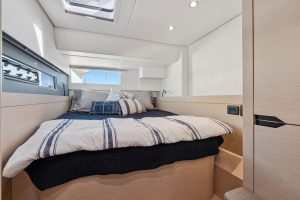

- Starboard Owner Hull Aft Stateroom: queen bed with Cocomat latex mattress and washable cover; 2 lateral steps with shoe storage; inboard bookshelf; 2 LED reading lamps; large fixed outboard window with porthole, Plisol blind and screen; large fixed aft bulkhead window; 1 deck hatch with OceanAir shade/screen

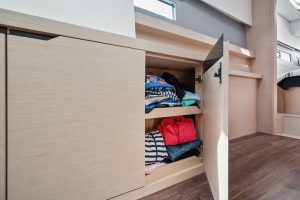

- Starboard Owner Hull Midship: wardrobe lockers and shelves inboard; wardrobe lockers and shelf outboard in lieu of desk and seat; fixed outboard window; built-in Candy 8+5 kg washing machine/dryer combo; 2 deck hatches with OceanAir shade/screens

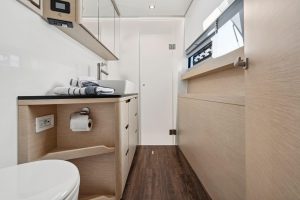

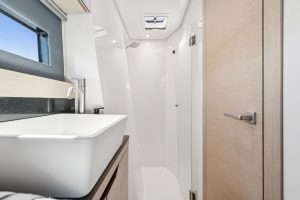

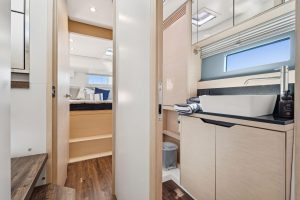

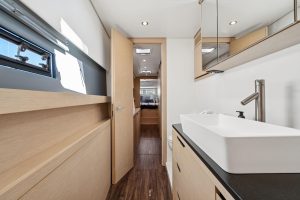

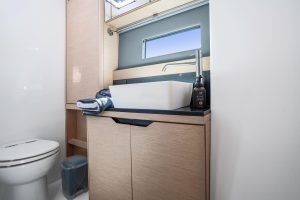

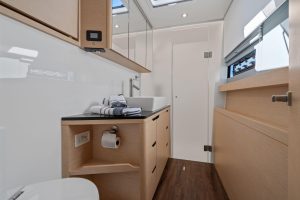

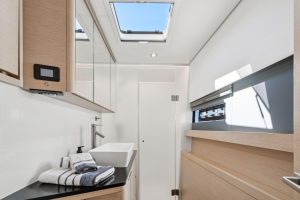

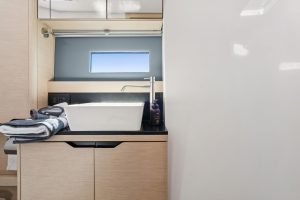

- Starboard Owner Hull Forward Bathroom: black quartz vanity top with sink and storage; large mirrored cabinet; Planus Artic 24VDC freshwater toilet; large separate shower stall; fixed outboard window with porthole and screen; 1 deck hatch with OceanAir shade/screen

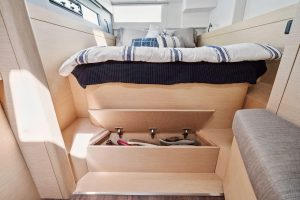

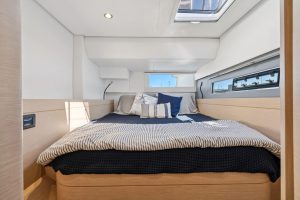

- Port Guest Hull Aft Stateroom: queen bed with Cocomat latex mattress and washable cover; 2 lateral steps with shoe storage; bookshelf inboard; wardrobe locker outboard; 2 LED reading lamps; large fixed outboard window with porthole, Plisol blind and screen; large fixed aft bulkhead window; 1 deck hatch with OceanAir shade/screen
- Port Guest Hull Midship Bathroom: black quartz vanity top with sink and storage; large mirrored cabinet; Planus Artic 24VDC freshwater toilet; linen cabinet outboard; separate shower stall; fixed outboard window; 2 deck hatches with OceanAir shade/screens
- Port Guest Hull Forward Stateroom: double bed with Cocomat latex mattress and washable cover; wardrobe locker outboard; bookshelf inboard; 2 LED reading lamps; large fixed outboard window with porthole, Plisol blind and screen; 1 deck hatch with OceanAir shade/screen

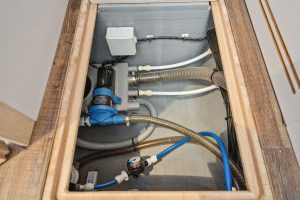

Freshwater and Plumbing

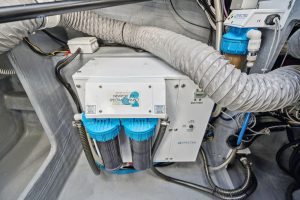

- Spectra Newport 700 MKII 110 l/hr (29 gal/hr) watermaker with diverter valves to water tanks
- Spectra Z+ION membrane protection system
- Jabsco Par-Max 6 Plus seawater washdown at anchor locker
- Freshwater washdown at anchor locker
- 2x Planus Artic freshwater toilets
- 2x high-grade linear polyethylene inter-connected fuel tanks at mast base with inspection plates and gauge at chart table (correct tankage: 2 tanks, 1x100 gal; 1x60 gal)
- 2x high-grade linear polyethylene water tanks in midship bilge area with inspection plates and gauge at chart table
- 2x inter-connected 24VDC fresh water pumps with 3x expansion tanks
- 2x 40 l (10.6 gal) water heaters (220VAC and engine heat exchanger)
- 2x 60 l (15.9 gal) high-grade linear polyethylene black water tanks with Y valves, gravity and deck pump-out discharge, gauge/alarm
- 4x automatic bilge pumps (one each engine compartment and one each hull midship)
- 2x 20-gal composite propane tanks in cockpit seat locker with quick connect hose to BBQ grill
Anchoring and Mooring
- Lofrans Tigres 1500W horizontal windlass with foot controls at anchor locker
- Wireless remote windlass controller
- Stainless anchor roller integral with compression beam
- Rocna 33 kg primary anchor with 100 m of 10 mm G40 chain and 5 m braided nylon rode
- Fortress aluminum secondary anchor with 10 m chain and 100 m rode
- Braided nylon anchor bridle

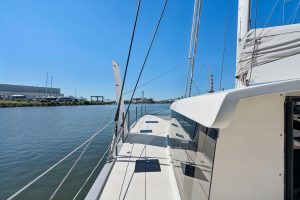

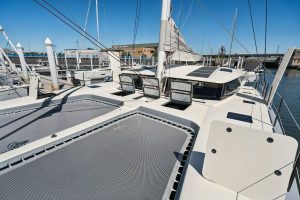

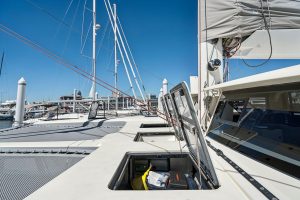

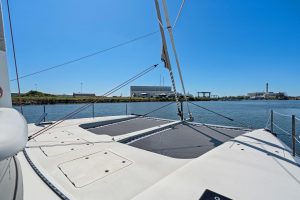

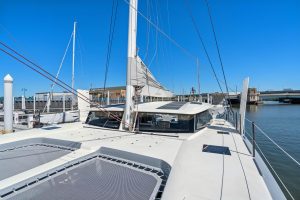

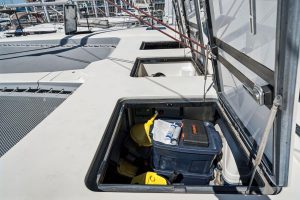

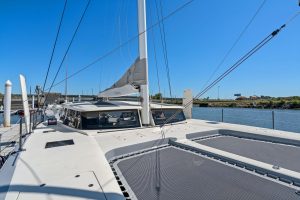

Deck Gear

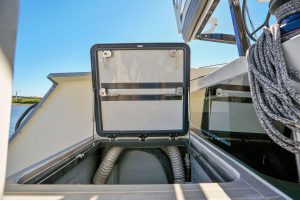

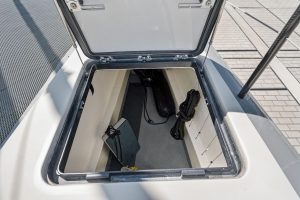

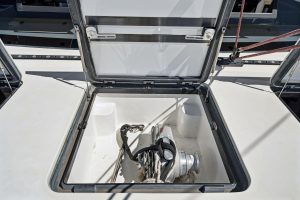

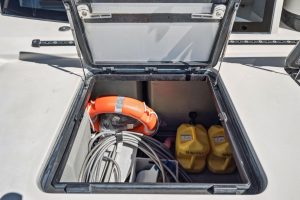

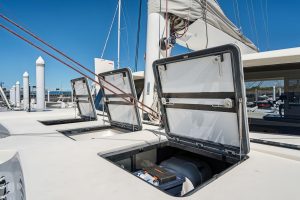

- Seasmart flush deck carbon composite hatches: 2x 720x720 mm forepeak; 2x 800x800 mm at mast base for fuel and storage; 1x 800x800 mm at mast base for anchor windlass; 2x 800x800 mm engine room hatches; 2x 512x512 mm above forward cabins; 2x 512x512 mm above aft cabins; 2x 330x330 mm on salon roof; 2x 512x512 mm in forward salon windows; 2x 330x330 mm port guest bathroom; 2x 330x330 mm in starboard hull midship
- 2x 1200x380 mm tinted safety glass in aft bulkhead of aft cabins
- 2x Lewmar Flush Mitre 150x600 mm portholes in aft cabins
- 2x Lewmar Flush Mitre 150x600 mm portholes in forward cabins
- 2x Goiot 570x500 mm escape hatches under stairs of hulls with access to and from hulls
- Sunrise Yacht Products 2-part grey trampoline individually attached to hulls, forward crossbeam, and compression beam
- Molded toe rail
- 8x Seasmart 320 mm aluminum folding cleats
- 2x Seasmart 240 mm aluminum folding cleats
- Seasmart 65 cm high carbon stanchions with Dyneema double lifelines
- Port and starboard boarding gates
- GS composite carbon folding gangway with padded storage bag
- GMT carbon removable swim/boarding ladder with padded storage bag
- Flush-mounted retractable transom swim ladder
- Transom and cockpit LED courtesy lights
- Canope foredeck sun awning
- Foredeck trampoline cushions
- Lopolight LED deck level running lights
- Hella LED steaming/deck light
- Dock lines and fenders

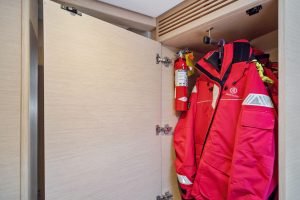

Safety Gear
- Deck padeyes and jacklines
- 2x escape hatches
- Airmar 6-person canister liferaft (inspected 9/2022)
- Plastimo IOR inflatable Danbuoy
- MOB rescue system
- Ditch bag with flares
- Horn
- Manual bilge pumps
- 2x engine room fire extinguishers with remote operation in cockpit
- 5x hand-held fire extinguishers
- 3x diesel tank emergency shut-off valve controls in cockpit (one for each main engine, one for generator)
- 1x emergency tiller
HVAC
- Webasto Blue Cool V50 chiller (air conditioning/reverse cycle heat) 50,000 BTU capacity
- Air handlers in each cabin with individual digital controls (5 zones total)
Disclaimer
- Vessel details offered in good faith; accuracy and condition not guaranteed; buyer should verify via agents or surveyors
- Vessel offered subject to prior sale, price change, or withdrawal without notice
- Not for sale to US residents in US waters

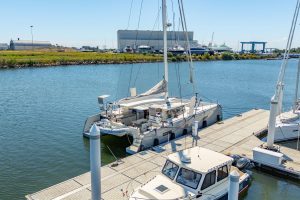

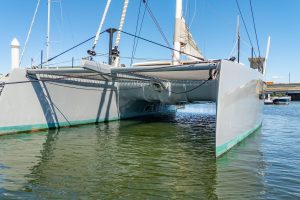

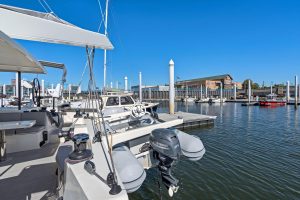

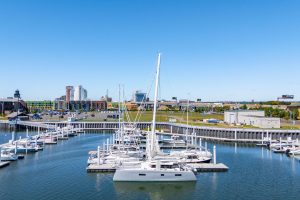

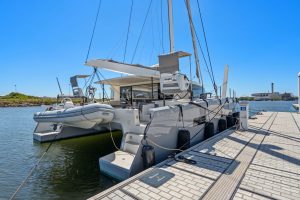

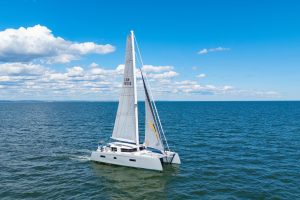

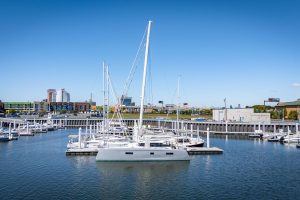

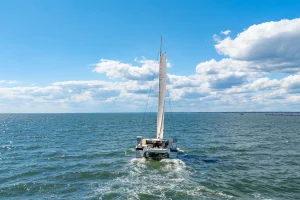

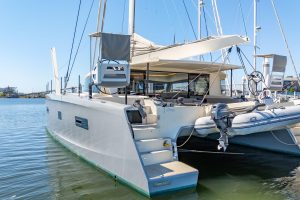

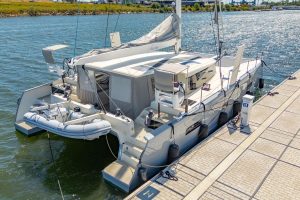

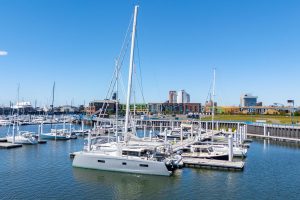

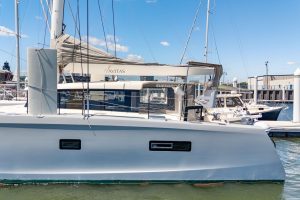

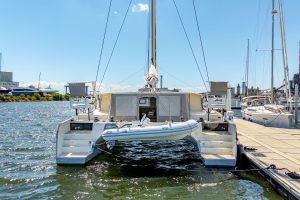

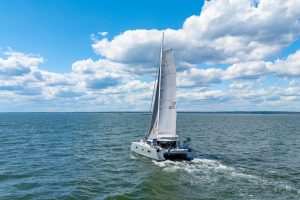

Exterior Photos

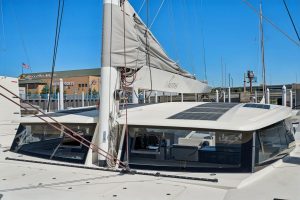

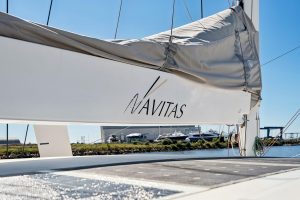

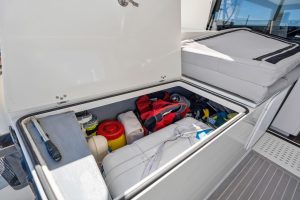

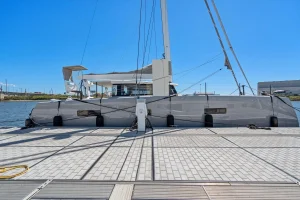

Deck Photos

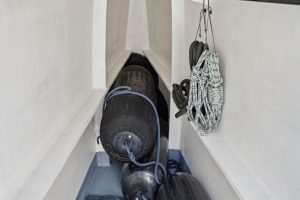

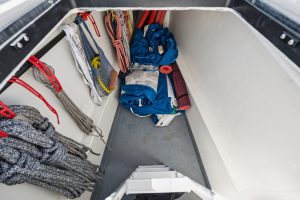

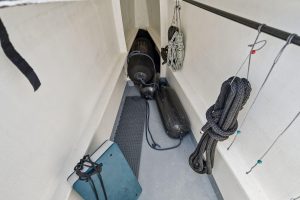

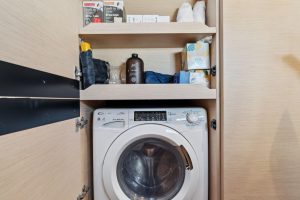

Interior Photos
Cabin Photos
Head Photos

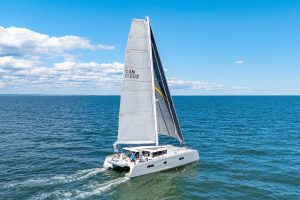

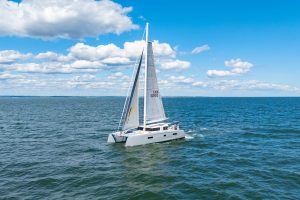

Other Photos
